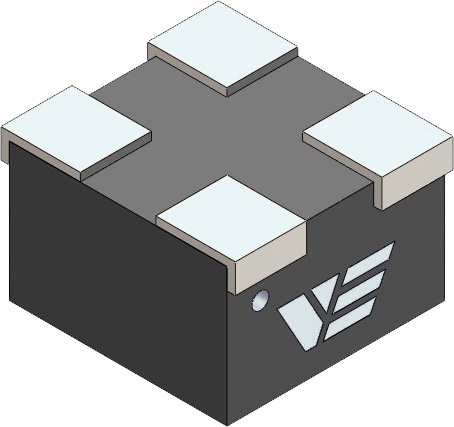

CURRENT SENSE TRANSFORMERS

Vanguard Electronics Current Sense Transformers are high-reliability components designed for precise current measurement in demanding applications. These transformers are part of Vanguard’s extensive line of magnetic components, which cater to industries such as defense, aerospace, space, and medical.

Name	Grade	Turns Ratio	Inductance (µH)	DCR MAX (OHMS)	Mounting	Height (inches)	hf:tax:pa_common-inductance-µh	hf:tax:pa_common-dcr-max-ohms	hf:tax:pa_length-inches	hf:tax:pa_width-inches	hf:tax:pa_height-inches	hf:tax:pa_mounting-type	hf:tax:pa_series
CS101	Hi-Reliability	1:50	2800	1	SMD	0.24	2800	1	0-26	0-26	0-24	smd	cs100
CS101TH	Hi-Reliability	1:50	2800	1	THT	0.24	2800	1	0-26	0-26	0-24	tht	cs100
CS102	Hi-Reliability	1:50	4700	1.2	SMD	0.24	4700	1-2	0-41	0-41	0-24	smd	cs100
CS102TH	Hi-Reliability	1:50	4700	1.2	THT	0.24	4700	1-2	0-41	0-41	0-24	tht	cs100
CS103	Hi-Reliability	1:50	4400	1.2	SMD	0.31	4400	1-2	0-41	0-41	0-31	smd	cs100
CS103TH	Hi-Reliability	1:50	4400	1.2	THT	0.31	4400	1-2	0-41	0-41	0-31	tht	cs100
CS104	Hi-Reliability	0.111111111	5700	1.2	SMD	0.24	5700	1-2	0-26	0-26	0-24	smd	cs100
CS104TH	Hi-Reliability	0.111111111	5700	1.2	THT	0.24	5700	1-2	0-26	0-26	0-24	tht	cs100
CS105	Hi-Reliability	0.111111111	8900	1.7	SMD	0.24	8900	1-7	0-41	0-41	0-24	smd	cs100
CS105TH	Hi-Reliability	0.111111111	8900	1.7	THT	0.24	8900	1-7	0-41	0-41	0-24	tht	cs100
CS106	Hi-Reliability	0.111111111	21000	2.9	SMD	0.31	21000	2-9	0-535	0-535	0-31	smd	cs100
CS106TH	Hi-Reliability	0.111111111	21000	2.9	THT	0.31	21000	2-9	0-535	0-535	0-31	tht	cs100
CS107	Hi-Reliability	0.180555556	23000	5.6	SMD	0.24	23000	5-6	0-26	0-26	0-24	smd	cs100
CS107TH	Hi-Reliability	0.180555556	23000	5.6	THT	0.24	23000	5-6	0-26	0-26	0-24	tht	cs100
CS108	Hi-Reliability	0.180555556	35000	7.9	SMD	0.31	35000	7-9	0-41	0-41	0-31	smd	cs100
CS108TH	Hi-Reliability	0.180555556	35000	7.9	THT	0.31	35000	7-9	0-41	0-41	0-31	tht	cs100
CS109	Hi-Reliability	0.180555556	86000	6	SMD	0.31	86000	6	0-535	0-535	0-31	smd	cs100
CS109TH	Hi-Reliability	0.180555556	86000	6	THT	0.31	86000	6	0-535	0-535	0-31	tht	cs100
CS201	Hi-Reliability	1:50:50	2200	0.72	SMD	0.3	2200	0-72	0-405	0-405	0-3	smd	cs200
CS201TH	Hi-Reliability	1:50:50	2200	0.72	THT	0.3	2200	0-72	0-405	0-405	0-3	tht	cs200
CS202	Hi-Reliability	1:50:50	5300	1.4	SMD	0.475	5300	1-4	0-61	0-61	0-475	smd	cs200
CS202TH	Hi-Reliability	1:50:50	5300	1.4	THT	0.475	5300	1-4	0-61	0-61	0-475	tht	cs200
CS203	Hi-Reliability	1:50:50	5300	1.4	SMD	0.475	5300	1-4	0-61	0-61	0-475	smd	cs200
CS203TH	Hi-Reliability	1:50:50	5300	1.4	THT	0.475	5300	1-4	0-61	0-61	0-475	tht	cs200
CS204	Hi-Reliability	1:100:100	8900	3.8	SMD	0.3	8900	3-8	0-405	0-405	0-3	smd	cs200
CS204TH	Hi-Reliability	1:100:100	8900	3.8	THT	0.3	8900	3-8	0-405	0-405	0-3	tht	cs200
CS205	Hi-Reliability	1:100:100	21000	2.9	SMD	0.475	21000	2-9	0-61	0-61	0-475	smd	cs200
CS205TH	Hi-Reliability	1:100:100	21000	2.9	THT	0.475	21000	2-9	0-61	0-61	0-475	tht	cs200
CS206	Hi-Reliability	1:100:100	21000	2.9	SMD	0.475	21000	2-9	0-61	0-61	0-475	smd	cs200
CS206TH	Hi-Reliability	1:100:100	21000	2.9	THT	0.475	21000	2-9	0-61	0-61	0-475	tht	cs200
CS301	Hi-Reliability	1:1:50:50	2200	0.72	SMD	0.475	2200	0-72	0-61	0-61	0-475	smd	cs300
CS301TH	Hi-Reliability	1:1:50:50	2200	0.72	THT	0.475	2200	0-72	0-61	0-61	0-475	tht	cs300
CS302	Hi-Reliability	1:1:50:50	5300	1.5	SMD	0.475	5300	1-5	0-61	0-61	0-475	smd	cs300
CS302TH	Hi-Reliability	1:1:50:50	5300	1.5	THT	0.475	5300	1-5	0-61	0-61	0-475	tht	cs300
CS303	Hi-Reliability	1:1:50:50	2200	0.72	SMD	0.475	2200	0-72	0-61	0-61	0-475	smd	cs300
CS303TH	Hi-Reliability	1:1:50:50	2200	0.72	THT	0.475	2200	0-72	0-61	0-61	0-475	tht	cs300
CS304	Hi-Reliability	1:1:50:50	5300	1.4	SMD	0.475	5300	1-4	0-61	0-61	0-475	smd	cs300
CS304TH	Hi-Reliability	1:1:50:50	5300	1.4	THT	0.475	5300	1-4	0-61	0-61	0-475	tht	cs300
CS305	Hi-Reliability	1:1:100:100	8900	3.8	SMD	0.475	8900	3-8	0-61	0-61	0-475	smd	cs300
CS305TH	Hi-Reliability	1:1:100:100	8900	3.8	THT	0.475	8900	3-8	0-61	0-61	0-475	tht	cs300
CS306	Hi-Reliability	1:1:100:100	21300	2.9	SMD	0.475	21300	2-9	0-61	0-61	0-475	smd	cs300
CS306TH	Hi-Reliability	1:1:100:100	21300	2.9	THT	0.475	21300	2-9	0-61	0-61	0-475	tht	cs300
CS307	Hi-Reliability	1:1:100:100	8900	3.8	SMD	0.475	8900	3-8	0-61	0-61	0-475	smd	cs300
CS307TH	Hi-Reliability	1:1:100:100	8900	3.8	THT	0.475	8900	3-8	0-61	0-61	0-475	tht	cs300
CS308	Hi-Reliability	1:1:100:100	21000	2.9	SMD	0.475	21000	2-9	0-61	0-61	0-475	smd	cs300
CS308TH	Hi-Reliability	1:1:100:100	21000	2.9	THT	0.475	21000	2-9	0-61	0-61	0-475	tht	cs300
CS401	Hi-Reliability	1:50:50:50:50	5300	1.5	SMD	0.475	5300	1-5	0-75	0-75	0-475	smd	cs400
CS401TH	Hi-Reliability	1:50:50:50:50	5300	1.5	THT	0.475	5300	1-5	0-75	0-75	0-475	tht	cs400
CS402	Hi-Reliability	1:50:50:50:50	5300	1.5	SMD	0.475	5300	1-5	0-75	0-75	0-475	smd	cs400
CS402TH	Hi-Reliability	1:50:50:50:50	5300	1.5	THT	0.475	5300	1-5	0-75	0-75	0-475	tht	cs400
SCS101	Space (MIL-STD-981)	1:50	2800	1	SMD	0.24	2800	1	0-26	0-26	0-24	smd	scs100
SCS101TH	Space (MIL-STD-981)	1:50	2800	1	THT	0.24	2800	1	0-26	0-26	0-24	tht	scs100
SCS102	Space (MIL-STD-981)	1:50	4700	1.2	SMD	0.24	4700	1-2	0-41	0-41	0-24	smd	scs100
SCS102TH	Space (MIL-STD-981)	1:50	4700	1.2	THT	0.24	4700	1-2	0-41	0-41	0-24	tht	scs100
SCS103	Space (MIL-STD-981)	1:50	4400	1.2	SMD	0.31	4400	1-2	0-41	0-41	0-31	smd	scs100
SCS103TH	Space (MIL-STD-981)	1:50	4400	1.2	THT	0.31	4400	1-2	0-41	0-41	0-31	tht	scs100
SCS104	Space (MIL-STD-981)	0.111111111	5700	1.2	SMD	0.24	5700	1-2	0-26	0-26	0-24	smd	scs100
SCS104TH	Space (MIL-STD-981)	0.111111111	5700	1.2	THT	0.24	5700	1-2	0-26	0-26	0-24	tht	scs100
SCS105	Space (MIL-STD-981)	0.111111111	8900	1.7	SMD	0.24	8900	1-7	0-41	0-41	0-24	smd	scs100
SCS105TH	Space (MIL-STD-981)	0.111111111	8900	1.7	THT	0.24	8900	1-7	0-41	0-41	0-24	tht	scs100
SCS106	Space (MIL-STD-981)	0.111111111	21000	2.9	SMD	0.31	21000	2-9	0-535	0-535	0-31	smd	scs100
SCS106TH	Space (MIL-STD-981)	0.111111111	21000	2.9	THT	0.31	21000	2-9	0-535	0-535	0-31	tht	scs100
SCS107	Space (MIL-STD-981)	0.180555556	23000	5.6	SMD	0.24	23000	5-6	0-26	0-26	0-24	smd	scs100
SCS107TH	Space (MIL-STD-981)	0.180555556	23000	5.6	THT	0.24	23000	5-6	0-26	0-26	0-24	tht	scs100
SCS108	Space (MIL-STD-981)	0.180555556	35000	7.9	SMD	0.31	35000	7-9	0-41	0-41	0-31	smd	scs100
SCS108TH	Space (MIL-STD-981)	0.180555556	35000	7.9	THT	0.31	35000	7-9	0-41	0-41	0-31	tht	scs100
SCS109	Space (MIL-STD-981)	0.180555556	86000	6	SMD	0.31	86000	6	0-535	0-535	0-31	smd	scs100
SCS109TH	Space (MIL-STD-981)	0.180555556	86000	6	THT	0.31	86000	6	0-535	0-535	0-31	tht	scs100
SCS201	Space (MIL-STD-981)	1:50:50	2200	0.72	SMD	0.3	2200	0-72	0-405	0-405	0-3	smd	scs200
SCS201TH	Space (MIL-STD-981)	1:50:50	2200	0.72	THT	0.3	2200	0-72	0-405	0-405	0-3	tht	scs200
SCS202	Space (MIL-STD-981)	1:50:50	5300	1.4	SMD	0.475	5300	1-4	0-61	0-61	0-475	smd	scs200
SCS202TH	Space (MIL-STD-981)	1:50:50	5300	1.4	THT	0.475	5300	1-4	0-61	0-61	0-475	tht	scs200
SCS203	Space (MIL-STD-981)	1:50:50	5300	1.4	SMD	0.475	5300	1-4	0-61	0-61	0-475	smd	scs200
SCS203TH	Space (MIL-STD-981)	1:50:50	5300	1.4	THT	0.475	5300	1-4	0-61	0-61	0-475	tht	scs200
SCS204	Space (MIL-STD-981)	1:100:100	8900	3.8	SMD	0.3	8900	3-8	0-405	0-405	0-3	smd	scs200
SCS204TH	Space (MIL-STD-981)	1:100:100	8900	3.8	THT	0.3	8900	3-8	0-405	0-405	0-3	tht	scs200
SCS205	Space (MIL-STD-981)	1:100:100	21000	2.9	SMD	0.475	21000	2-9	0-61	0-61	0-475	smd	scs200
SCS205TH	Space (MIL-STD-981)	1:100:100	21000	2.9	THT	0.475	21000	2-9	0-61	0-61	0-475	tht	scs200
SCS206	Space (MIL-STD-981)	1:100:100	21000	2.9	SMD	0.475	21000	2-9	0-61	0-61	0-475	smd	scs200
SCS206TH	Space (MIL-STD-981)	1:100:100	21000	2.9	THT	0.475	21000	2-9	0-61	0-61	0-475	tht	scs200
SCS301	Space (MIL-STD-981)	1:1:50:50	2200	0.72	SMD	0.475	2200	0-72	0-61	0-61	0-475	smd	scs300
SCS301TH	Space (MIL-STD-981)	1:1:50:50	2200	0.72	THT	0.475	2200	0-72	0-61	0-61	0-475	tht	scs300
SCS302	Space (MIL-STD-981)	1:1:50:50	5300	1.5	SMD	0.475	5300	1-5	0-61	0-61	0-475	smd	scs300
SCS302TH	Space (MIL-STD-981)	1:1:50:50	5300	1.5	THT	0.475	5300	1-5	0-61	0-61	0-475	tht	scs300
SCS303	Space (MIL-STD-981)	1:1:50:50	2200	0.72	SMD	0.475	2200	0-72	0-61	0-61	0-475	smd	scs300
SCS303TH	Space (MIL-STD-981)	1:1:50:50	2200	0.72	THT	0.475	2200	0-72	0-61	0-61	0-475	tht	scs300
SCS304	Space (MIL-STD-981)	1:1:50:50	5300	1.4	SMD	0.475	5300	1-4	0-61	0-61	0-475	smd	scs300
SCS304TH	Space (MIL-STD-981)	1:1:50:50	5300	1.4	THT	0.475	5300	1-4	0-61	0-61	0-475	tht	scs300
SCS305	Space (MIL-STD-981)	1:1:100:100	8900	3.8	SMD	0.475	8900	3-8	0-61	0-61	0-475	smd	scs300
SCS305TH	Space (MIL-STD-981)	1:1:100:100	8900	3.8	THT	0.475	8900	3-8	0-61	0-61	0-475	tht	scs300
SCS306	Space (MIL-STD-981)	1:1:100:100	21300	2.9	SMD	0.475	21300	2-9	0-61	0-61	0-475	smd	scs300
SCS306TH	Space (MIL-STD-981)	1:1:100:100	21300	2.9	THT	0.475	21300	2-9	0-61	0-61	0-475	tht	scs300
SCS307	Space (MIL-STD-981)	1:1:100:100	8900	3.8	SMD	0.475	8900	3-8	0-61	0-61	0-475	smd	scs300
SCS307TH	Space (MIL-STD-981)	1:1:100:100	8900	3.8	THT	0.475	8900	3-8	0-61	0-61	0-475	tht	scs300
SCS308	Space (MIL-STD-981)	1:1:100:100	21000	2.9	SMD	0.475	21000	2-9	0-61	0-61	0-475	smd	scs300
SCS308TH	Space (MIL-STD-981)	1:1:100:100	21000	2.9	THT	0.475	21000	2-9	0-61	0-61	0-475	tht	scs300
SCS401	Space (MIL-STD-981)	1:50:50:50:50	5300	1.5	SMD	0.475	5300	1-5	0-75	0-75	0-475	smd	scs400
SCS401TH	Space (MIL-STD-981)	1:50:50:50:50	5300	1.5	THT	0.475	5300	1-5	0-75	0-75	0-475	tht	scs400
SCS402	Space (MIL-STD-981)	1:50:50:50:50	5300	1.5	SMD	0.475	5300	1-5	0-75	0-75	0-475	smd	scs400
SCS402TH	Space (MIL-STD-981)	1:50:50:50:50	5300	1.5	THT	0.475	5300	1-5	0-75	0-75	0-475	tht	scs400
