ISOLATION TRANSFORMERS

Vanguard Electronics offers high-reliability isolation transformers designed for demanding applications in defense, aerospace, space, and medical industries. These transformers provide complete electrical isolation between primary and secondary circuits, ensuring safety and protection for both equipment and operators.

Name	Grade	V-µS	Turns Ratio	Inductance (µH)	DCR MAX (OHMS)	Current MAX (A)	hf:tax:pa_v-us	hf:tax:pa_common-inductance-µh	hf:tax:pa_common-dcr-max-ohms	hf:tax:pa_common-current-max-a	hf:tax:pa_length-inches	hf:tax:pa_width-inches	hf:tax:pa_height-inches	hf:tax:pa_mounting-type	hf:tax:pa_series

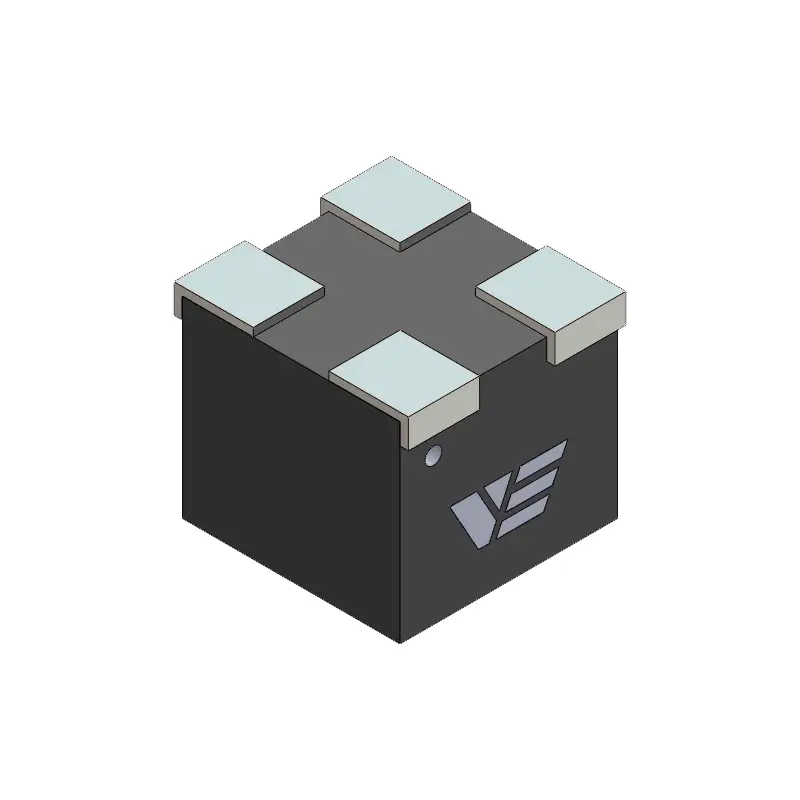

IT101	Hi-Reliability	30	1:01	5300	1.5	0.31	30	5300	1-5	0-31	0-26	0-26	0-23	smd	it100
IT101TH	Hi-Reliability	30	1:01	5300	1.5	0.31	30	5300	1-5	0-31	0-26	0-26	0-23	tht	it100
IT102	Hi-Reliability	30	01:01.1	5300	1.5, 2.2	0.31	30	5300	1-5 2-2	0-31	0-26	0-26	0-23	smd	it100
IT102TH	Hi-Reliability	30	01:01.1	5300	1.5, 2.2	0.31	30	5300	1-5 2-2	0-31	0-26	0-26	0-23	tht	it100
IT103	Hi-Reliability	30	01:01.2	5300	1.5, 2.4	0.31	30	5300	1-5 2-4	0-31	0-26	0-26	0-23	smd	it100
IT103TH	Hi-Reliability	30	01:01.2	5300	1.5, 2.4	0.31	30	5300	1-5 2-4	0-31	0-26	0-26	0-23	tht	it100
IT104	Hi-Reliability	30	1:02	5300	1.5, 3.1	0.31	30	5300	1-5 3-1	0-31	0-26	0-26	0-23	smd	it100
IT104TH	Hi-Reliability	30	1:02	5300	1.5, 3.1	0.31	30	5300	1-5 3-1	0-31	0-26	0-26	0-23	tht	it100
IT105	Hi-Reliability	30	01:00.5	5300	0.72, 1.5	0.31	30	5300	0-72 1-5	0-31	0-26	0-26	0-23	smd	it100
IT105TH	Hi-Reliability	30	01:00.5	5300	0.72, 1.5	0.31	30	5300	0-72 1-5	0-31	0-26	0-26	0-23	tht	it100
IT106	Hi-Reliability	20	1:01	2300	1	0.38	20	2300	1	0-38	0-26	0-26	0-23	smd	it100
IT106TH	Hi-Reliability	20	1:01	2300	1	0.38	20	2300	1	0-38	0-26	0-26	0-23	tht	it100
IT107	Hi-Reliability	20	01:01.1	2300	1, 1.1	0.38	20	2300	1 1-1	0-38	0-26	0-26	0-23	smd	it100
IT107TH	Hi-Reliability	20	01:01.1	2300	1, 1.1	0.38	20	2300	1 1-1	0-38	0-26	0-26	0-23	tht	it100
IT108	Hi-Reliability	20	01:01.2	2300	1, 1.2	0.38	20	2300	1 1-2	0-38	0-26	0-26	0-23	smd	it100
IT108TH	Hi-Reliability	20	01:01.2	2300	1, 1.2	0.38	20	2300	1 1-2	0-38	0-26	0-26	0-23	tht	it100
IT109	Hi-Reliability	20	1:02	2300	1, 2.1	0.38	20	2300	1 2-1	0-38	0-26	0-26	0-23	smd	it100
IT109TH	Hi-Reliability	20	1:02	2300	1, 2.1	0.38	20	2300	1 2-1	0-38	0-26	0-26	0-23	tht	it100
IT110	Hi-Reliability	20	01:00.5	2300	0.51, 1	0.38	20	2300	0-51 1	0-38	0-26	0-26	0-23	smd	it100
IT110TH	Hi-Reliability	20	01:00.5	2300	0.51, 1	0.38	20	2300	0-51 1	0-38	0-26	0-26	0-23	tht	it100
IT111	Hi-Reliability	10	1:01	590	0.5	0.53	10	590	0-5	0-53	0-26	0-26	0-23	smd	it100
IT111TH	Hi-Reliability	10	1:01	590	0.5	0.53	10	590	0-5	0-53	0-26	0-26	0-23	tht	it100
IT112	Hi-Reliability	10	01:01.1	590	0.5, 0.55	0.53	10	590	0-5 0-55	0-53	0-26	0-26	0-23	smd	it100
IT112TH	Hi-Reliability	10	01:01.1	590	0.5, 0.55	0.53	10	590	0-5 0-55	0-53	0-26	0-26	0-23	tht	it100
IT113	Hi-Reliability	10	01:01.2	590	0.5, 0.6	0.53	10	590	0-5 0-6	0-53	0-26	0-26	0-23	smd	it100
IT113TH	Hi-Reliability	10	01:01.2	590	0.5, 0.6	0.53	10	590	0-5 0-6	0-53	0-26	0-26	0-23	tht	it100
IT114	Hi-Reliability	10	1:02	590	0.5, 1	0.53	10	590	0-5 1	0-53	0-26	0-26	0-23	smd	it100
IT114TH	Hi-Reliability	10	1:02	590	0.5, 1	0.53	10	590	0-5 1	0-53	0-26	0-26	0-23	tht	it100
IT115	Hi-Reliability	10	01:00.5	590	0.26, 0.5	0.53	10	590	0-26 0-5	0-53	0-26	0-26	0-23	smd	it100
IT115TH	Hi-Reliability	10	01:00.5	590	0.26, 0.5	0.53	10	590	0-26 0-5	0-53	0-26	0-26	0-23	tht	it100
IT121	Hi-Reliability	30	1:01	700	1.5	0.43	30	700	1-5	0-43	0-26	0-26	0-23	smd	it100
IT121TH	Hi-Reliability	30	1:01	700	1.5	0.43	30	700	1-5	0-43	0-26	0-26	0-23	tht	it100
IT122	Hi-Reliability	30	01:01.1	700	1.5, 2.2	0.43	30	700	1-5 2-2	0-43	0-26	0-26	0-23	smd	it100
IT122TH	Hi-Reliability	30	01:01.1	700	1.5, 2.2	0.43	30	700	1-5 2-2	0-43	0-26	0-26	0-23	tht	it100
IT123	Hi-Reliability	30	01:01.2	700	1.5, 2.4	0.43	30	700	1-5 2-4	0-43	0-26	0-26	0-23	smd	it100
IT123TH	Hi-Reliability	30	01:01.2	700	1.5, 2.4	0.43	30	700	1-5 2-4	0-43	0-26	0-26	0-23	tht	it100
IT124	Hi-Reliability	30	1:02	700	1.5, 3.1	0.43	30	700	1-5 3-1	0-43	0-26	0-26	0-23	smd	it100
IT124TH	Hi-Reliability	30	1:02	700	1.5, 3.1	0.43	30	700	1-5 3-1	0-43	0-26	0-26	0-23	tht	it100
IT125	Hi-Reliability	30	01:00.5	700	0.7, 1.5	0.43	30	700	0-7 1-5	0-43	0-26	0-26	0-23	smd	it100
IT125TH	Hi-Reliability	30	01:00.5	700	0.7, 1.5	0.43	30	700	0-7 1-5	0-43	0-26	0-26	0-23	tht	it100
IT126	Hi-Reliability	20	1:01	310	1	0.52	20	310	1	0-52	0-26	0-26	0-23	smd	it100
IT126TH	Hi-Reliability	20	1:01	310	1	0.52	20	310	1	0-52	0-26	0-26	0-23	tht	it100
IT127	Hi-Reliability	20	01:01.1	310	1, 1.1	0.52	20	310	1 1-1	0-52	0-26	0-26	0-23	smd	it100
IT127TH	Hi-Reliability	20	01:01.1	310	1, 1.1	0.52	20	310	1 1-1	0-52	0-26	0-26	0-23	tht	it100
IT128	Hi-Reliability	20	01:01.2	310	1, 1.2	0.52	20	310	1 1-2	0-52	0-26	0-26	0-23	smd	it100
IT128TH	Hi-Reliability	20	01:01.2	310	1, 1.2	0.52	20	310	1 1-2	0-52	0-26	0-26	0-23	tht	it100
IT129	Hi-Reliability	20	1:02	310	1, 2.1	0.52	20	310	1 2-1	0-52	0-26	0-26	0-23	smd	it100
IT129TH	Hi-Reliability	20	1:02	310	1, 2.1	0.52	20	310	1 2-1	0-52	0-26	0-26	0-23	tht	it100
IT130	Hi-Reliability	20	01:00.5	310	0.5, 1	0.52	20	310	0-5 1	0-52	0-26	0-26	0-23	smd	it100
IT130TH	Hi-Reliability	20	01:00.5	310	0.5, 1	0.52	20	310	0-5 1	0-52	0-26	0-26	0-23	tht	it100
IT131	Hi-Reliability	10	1:01	770	0.5	0.74	10	770	0-5	0-74	0-26	0-26	0-23	smd	it100
IT131TH	Hi-Reliability	10	1:01	770	0.5	0.74	10	770	0-5	0-74	0-26	0-26	0-23	tht	it100
IT132	Hi-Reliability	10	01:01.1	770	0.5, 0.6	0.74	10	770	0-5 0-6	0-74	0-26	0-26	0-23	smd	it100
IT132TH	Hi-Reliability	10	01:01.1	770	0.5, 0.6	0.74	10	770	0-5 0-6	0-74	0-26	0-26	0-23	tht	it100
IT133	Hi-Reliability	10	01:01.2	770	0.5, 0.6	0.74	10	770	0-5 0-6	0-74	0-26	0-26	0-23	smd	it100
IT133TH	Hi-Reliability	10	01:01.2	770	0.5, 0.6	0.74	10	770	0-5 0-6	0-74	0-26	0-26	0-23	tht	it100
IT134	Hi-Reliability	10	1:02	770	0.5, 1	0.74	10	770	0-5 1	0-74	0-26	0-26	0-23	smd	it100
IT134TH	Hi-Reliability	10	1:02	770	0.5, 1	0.74	10	770	0-5 1	0-74	0-26	0-26	0-23	tht	it100

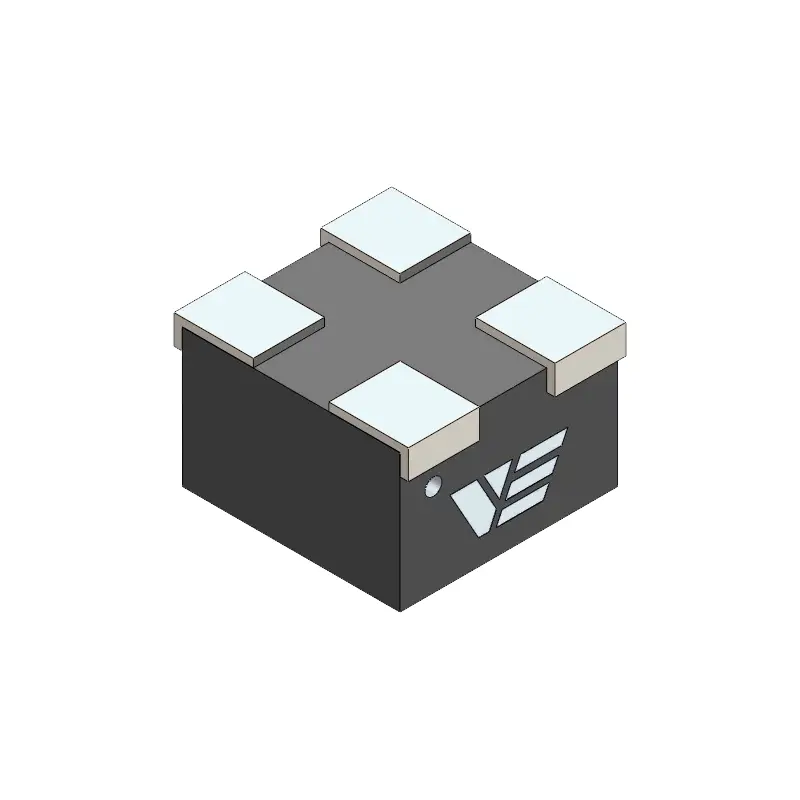

IT201	Hi-Reliability	60	1:01	6900	0.77	0.65	60	6900	0-77	0-65	0-41	0-41	0-24	smd	it200
IT201TH	Hi-Reliability	60	1:01	6900	0.77	0.65	60	6900	0-77	0-65	0-41	0-41	0-24	tht	it200
IT202	Hi-Reliability	60	01:01.1	6900	0.77, 0.85	0.65	60	6900	0-77 0-85	0-65	0-41	0-41	0-24	smd	it200
IT202TH	Hi-Reliability	60	01:01.1	6900	0.77, 0.85	0.65	60	6900	0-77 0-85	0-65	0-41	0-41	0-24	tht	it200
IT203	Hi-Reliability	60	01:01.2	6900	0.77, 0.92	0.65	60	6900	0-77 0-92	0-65	0-41	0-41	0-24	smd	it200
IT203TH	Hi-Reliability	60	01:01.2	6900	0.77, 0.92	0.65	60	6900	0-77 0-92	0-65	0-41	0-41	0-24	tht	it200
IT204	Hi-Reliability	60	1:02	6900	0.77, 3.1	0.65	60	6900	0-77 3-1	0-65	0-41	0-41	0-24	smd	it200
IT204TH	Hi-Reliability	60	1:02	6900	0.77, 3.1	0.65	60	6900	0-77 3-1	0-65	0-41	0-41	0-24	tht	it200
IT205	Hi-Reliability	60	01:00.5	6900	0.39, 0.77	0.65	60	6900	0-39 0-77	0-65	0-41	0-41	0-24	smd	it200
IT205TH	Hi-Reliability	60	01:00.5	6900	0.39, 0.77	0.65	60	6900	0-39 0-77	0-65	0-41	0-41	0-24	tht	it200
IT206	Hi-Reliability	40	1:01	2900	0.51	0.79	40	2900	0-51	0-79	0-41	0-41	0-24	smd	it200
IT206TH	Hi-Reliability	40	1:01	2900	0.51	0.79	40	2900	0-51	0-79	0-41	0-41	0-24	tht	it200
IT207	Hi-Reliability	40	01:01.1	2900	0.51, 0.56	0.79	40	2900	0-51 0-56	0-79	0-41	0-41	0-24	smd	it200
IT207TH	Hi-Reliability	40	01:01.1	2900	0.51, 0.56	0.79	40	2900	0-51 0-56	0-79	0-41	0-41	0-24	tht	it200
IT208	Hi-Reliability	40	01:01.2	2900	0.51, 0.62	0.79	40	2900	0-51 0-62	0-79	0-41	0-41	0-24	smd	it200
IT208TH	Hi-Reliability	40	01:01.2	2900	0.51, 0.62	0.79	40	2900	0-51 0-62	0-79	0-41	0-41	0-24	tht	it200
IT209	Hi-Reliability	40	1:02	2900	0.51, 1.1	0.79	40	2900	0-51 1-1	0-79	0-41	0-41	0-24	smd	it200
IT209TH	Hi-Reliability	40	1:02	2900	0.51, 1.1	0.79	40	2900	0-51 1-1	0-79	0-41	0-41	0-24	tht	it200
IT210	Hi-Reliability	40	01:00.5	2900	0.3, 0.51	0.79	40	2900	0-3 0-51	0-79	0-41	0-41	0-24	smd	it200
IT210TH	Hi-Reliability	40	01:00.5	2900	0.3, 0.51	0.79	40	2900	0-3 0-51	0-79	0-41	0-41	0-24	tht	it200
IT211	Hi-Reliability	20	1:01	810	0.27	1.1	20	810	0-27	1-1	0-41	0-41	0-24	smd	it200
IT211TH	Hi-Reliability	20	1:01	810	0.27	1.1	20	810	0-27	1-1	0-41	0-41	0-24	tht	it200
IT212	Hi-Reliability	20	01:01.1	810	0.27, 0.3	1.1	20	810	0-27 0-3	1-1	0-41	0-41	0-24	smd	it200
IT212TH	Hi-Reliability	20	01:01.1	810	0.27, 0.3	1.1	20	810	0-27 0-3	1-1	0-41	0-41	0-24	tht	it200
IT213	Hi-Reliability	20	01:01.2	810	0.27, 0.32	1.1	20	810	0-27 0-32	1-1	0-41	0-41	0-24	smd	it200
IT213TH	Hi-Reliability	20	01:01.2	810	0.27, 0.32	1.1	20	810	0-27 0-32	1-1	0-41	0-41	0-24	tht	it200
IT214	Hi-Reliability	20	1:02	810	0.27, 0.55	1.1	20	810	0-27 0-55	1-1	0-41	0-41	0-24	smd	it200
IT214TH	Hi-Reliability	20	1:02	810	0.27, 0.55	1.1	20	810	0-27 0-55	1-1	0-41	0-41	0-24	tht	it200
IT215	Hi-Reliability	20	01:00.5	810	0.15, 0.27	1.1	20	810	0-15 0-27	1-1	0-41	0-41	0-24	smd	it200
IT215TH	Hi-Reliability	20	01:00.5	810	0.15, 0.27	1.1	20	810	0-15 0-27	1-1	0-41	0-41	0-24	tht	it200
IT221	Hi-Reliability	60	1:01	970	0.77	0.78	60	970	0-77	0-78	0-41	0-41	0-24	smd	it200
IT221TH	Hi-Reliability	60	1:01	970	0.77	0.78	60	970	0-77	0-78	0-41	0-41	0-24	tht	it200
IT222	Hi-Reliability	60	01:01.1	970	0.77, 0.85	0.78	60	970	0-77 0-85	0-78	0-41	0-41	0-24	smd	it200
IT222TH	Hi-Reliability	60	01:01.1	970	0.77, 0.85	0.78	60	970	0-77 0-85	0-78	0-41	0-41	0-24	tht	it200
IT223	Hi-Reliability	60	01:01.2	970	0.77, 0.92	0.78	60	970	0-77 0-92	0-78	0-41	0-41	0-24	smd	it200
IT223TH	Hi-Reliability	60	01:01.2	970	0.77, 0.92	0.78	60	970	0-77 0-92	0-78	0-41	0-41	0-24	tht	it200
IT224	Hi-Reliability	60	1:02	970	0.77, 3.1	0.78	60	970	0-77 3-1	0-78	0-41	0-41	0-24	smd	it200
IT224TH	Hi-Reliability	60	1:02	970	0.77, 3.1	0.78	60	970	0-77 3-1	0-78	0-41	0-41	0-24	tht	it200
IT225	Hi-Reliability	60	01:00.5	970	0.4, 0.77	0.78	60	970	0-4 0-77	0-78	0-41	0-41	0-24	smd	it200
IT225TH	Hi-Reliability	60	01:00.5	970	0.4, 0.77	0.78	60	970	0-4 0-77	0-78	0-41	0-41	0-24	tht	it200
IT226	Hi-Reliability	40	1:01	420	0.51	0.96	40	420	0-51	0-96	0-41	0-41	0-24	smd	it200
IT226TH	Hi-Reliability	40	1:01	420	0.51	0.96	40	420	0-51	0-96	0-41	0-41	0-24	tht	it200
IT227	Hi-Reliability	40	01:01.1	420	0.51, 0.56	0.96	40	420	0-51 0-56	0-96	0-41	0-41	0-24	smd	it200
IT227TH	Hi-Reliability	40	01:01.1	420	0.51, 0.56	0.96	40	420	0-51 0-56	0-96	0-41	0-41	0-24	tht	it200
IT228	Hi-Reliability	40	01:01.2	420	0.51, 0.62	0.96	40	420	0-51 0-62	0-96	0-41	0-41	0-24	smd	it200
IT228TH	Hi-Reliability	40	01:01.2	420	0.51, 0.62	0.96	40	420	0-51 0-62	0-96	0-41	0-41	0-24	tht	it200
IT229	Hi-Reliability	40	1:02	420	0.51, 1.1	0.96	40	420	0-51 1-1	0-96	0-41	0-41	0-24	smd	it200
IT229TH	Hi-Reliability	40	1:02	420	0.51, 1.1	0.96	40	420	0-51 1-1	0-96	0-41	0-41	0-24	tht	it200
IT230	Hi-Reliability	40	01:00.5	420	0.3, 0.51	0.96	40	420	0-3 0-51	0-96	0-41	0-41	0-24	smd	it200
IT230TH	Hi-Reliability	40	01:00.5	420	0.3, 0.51	0.96	40	420	0-3 0-51	0-96	0-41	0-41	0-24	tht	it200
IT231	Hi-Reliability	20	1:01	120	0.27	1.3	20	120	0-27	1-3	0-41	0-41	0-24	smd	it200
IT231TH	Hi-Reliability	20	1:01	120	0.27	1.3	20	120	0-27	1-3	0-41	0-41	0-24	tht	it200
IT232	Hi-Reliability	20	01:01.1	120	0.27, 0.3	1.3	20	120	0-27 0-3	1-3	0-41	0-41	0-24	smd	it200
IT232TH	Hi-Reliability	20	01:01.1	120	0.27, 0.3	1.3	20	120	0-27 0-3	1-3	0-41	0-41	0-24	tht	it200
IT233	Hi-Reliability	20	01:01.2	120	0.27, 0.32	1.3	20	120	0-27 0-32	1-3	0-41	0-41	0-24	smd	it200
IT233TH	Hi-Reliability	20	01:01.2	120	0.27, 0.32	1.3	20	120	0-27 0-32	1-3	0-41	0-41	0-24	tht	it200
IT234	Hi-Reliability	20	1:02	120	0.27, 0.55	1.3	20	120	0-27 0-55	1-3	0-41	0-41	0-24	smd	it200
IT234TH	Hi-Reliability	20	1:02	120	0.27, 0.55	1.3	20	120	0-27 0-55	1-3	0-41	0-41	0-24	tht	it200
IT235	Hi-Reliability	20	01:00.5	120	0.16, 0.27	1.3	20	120	0-16 0-27	1-3	0-41	0-41	0-24	smd	it200
IT235TH	Hi-Reliability	20	01:00.5	120	0.16, 0.27	1.3	20	120	0-16 0-27	1-3	0-41	0-41	0-24	tht	it200
SIT101	Space (MIL-STD-981)	30	1:01	5300	1.5	0.31	30	5300	1-5	0-31	0-26	0-26	0-23	smd	sit100
SIT101TH	Space (MIL-STD-981)	30	1:01	5300	1.5	0.31	30	5300	1-5	0-31	0-26	0-26	0-23	tht	sit100
SIT102	Space (MIL-STD-981)	30	01:01.1	5300	1.5, 2.2	0.31	30	5300	1-5 2-2	0-31	0-26	0-26	0-23	smd	sit100
SIT102TH	Space (MIL-STD-981)	30	01:01.1	5300	1.5, 2.2	0.31	30	5300	1-5 2-2	0-31	0-26	0-26	0-23	tht	sit100
SIT103	Space (MIL-STD-981)	30	01:01.2	5300	1.5, 2.4	0.31	30	5300	1-5 2-4	0-31	0-26	0-26	0-23	smd	sit100
SIT103TH	Space (MIL-STD-981)	30	01:01.2	5300	1.5, 2.4	0.31	30	5300	1-5 2-4	0-31	0-26	0-26	0-23	tht	sit100
SIT104	Space (MIL-STD-981)	30	1:02	5300	1.5, 3.1	0.31	30	5300	1-5 3-1	0-31	0-26	0-26	0-23	smd	sit100
SIT104TH	Space (MIL-STD-981)	30	1:02	5300	1.5, 3.1	0.31	30	5300	1-5 3-1	0-31	0-26	0-26	0-23	tht	sit100
SIT105	Space (MIL-STD-981)	30	01:00.5	5300	0.72, 1.5	0.31	30	5300	0-72 1-5	0-31	0-26	0-26	0-23	smd	sit100
SIT105TH	Space (MIL-STD-981)	30	01:00.5	5300	0.72, 1.5	0.31	30	5300	0-72 1-5	0-31	0-26	0-26	0-23	tht	sit100
SIT106	Space (MIL-STD-981)	20	1:01	2300	1	0.38	20	2300	1	0-38	0-26	0-26	0-23	smd	sit100
SIT106TH	Space (MIL-STD-981)	20	1:01	2300	1	0.38	20	2300	1	0-38	0-26	0-26	0-23	tht	sit100
SIT107	Space (MIL-STD-981)	20	01:01.1	2300	1, 1.1	0.38	20	2300	1 1-1	0-38	0-26	0-26	0-23	smd	sit100
SIT107TH	Space (MIL-STD-981)	20	01:01.1	2300	1, 1.1	0.38	20	2300	1 1-1	0-38	0-26	0-26	0-23	tht	sit100
SIT108	Space (MIL-STD-981)	20	01:01.2	2300	1, 1.2	0.38	20	2300	1 1-2	0-38	0-26	0-26	0-23	smd	sit100
SIT108TH	Space (MIL-STD-981)	20	01:01.2	2300	1, 1.2	0.38	20	2300	1 1-2	0-38	0-26	0-26	0-23	tht	sit100
SIT109	Space (MIL-STD-981)	20	1:02	2300	1, 2.1	0.38	20	2300	1 2-1	0-38	0-26	0-26	0-23	smd	sit100
SIT109TH	Space (MIL-STD-981)	20	1:02	2300	1, 2.1	0.38	20	2300	1 2-1	0-38	0-26	0-26	0-23	tht	sit100
SIT110	Space (MIL-STD-981)	20	01:00.5	2300	0.51, 1	0.38	20	2300	0-51 1	0-38	0-26	0-26	0-23	smd	sit100
SIT110TH	Space (MIL-STD-981)	20	01:00.5	2300	0.51, 1	0.38	20	2300	0-51 1	0-38	0-26	0-26	0-23	tht	sit100
SIT111	Space (MIL-STD-981)	10	1:01	590	0.5	0.53	10	590	0-5	0-53	0-26	0-26	0-23	smd	sit100
SIT111TH	Space (MIL-STD-981)	10	1:01	590	0.5	0.53	10	590	0-5	0-53	0-26	0-26	0-23	tht	sit100
SIT112	Space (MIL-STD-981)	10	01:01.1	590	0.5, 0.55	0.53	10	590	0-5 0-55	0-53	0-26	0-26	0-23	smd	sit100
SIT112TH	Space (MIL-STD-981)	10	01:01.1	590	0.5, 0.55	0.53	10	590	0-5 0-55	0-53	0-26	0-26	0-23	tht	sit100
SIT113	Space (MIL-STD-981)	10	01:01.2	590	0.5, 0.6	0.53	10	590	0-5 0-6	0-53	0-26	0-26	0-23	smd	sit100
SIT113TH	Space (MIL-STD-981)	10	01:01.2	590	0.5, 0.6	0.53	10	590	0-5 0-6	0-53	0-26	0-26	0-23	tht	sit100
SIT114	Space (MIL-STD-981)	10	1:02	590	0.5, 1	0.53	10	590	0-5 1	0-53	0-26	0-26	0-23	smd	sit100
SIT114TH	Space (MIL-STD-981)	10	1:02	590	0.5, 1	0.53	10	590	0-5 1	0-53	0-26	0-26	0-23	tht	sit100
SIT115	Space (MIL-STD-981)	10	01:00.5	590	0.26, 0.5	0.53	10	590	0-26 0-5	0-53	0-26	0-26	0-23	smd	sit100
SIT115TH	Space (MIL-STD-981)	10	01:00.5	590	0.26, 0.5	0.53	10	590	0-26 0-5	0-53	0-26	0-26	0-23	tht	sit100
SIT121	Space (MIL-STD-981)	30	1:01	700	1.5	0.43	30	700	1-5	0-43	0-26	0-26	0-23	smd	sit100
SIT121TH	Space (MIL-STD-981)	30	1:01	700	1.5	0.43	30	700	1-5	0-43	0-26	0-26	0-23	tht	sit100
SIT122	Space (MIL-STD-981)	30	01:01.1	700	1.5, 2.2	0.43	30	700	1-5 2-2	0-43	0-26	0-26	0-23	smd	sit100
SIT122TH	Space (MIL-STD-981)	30	01:01.1	700	1.5, 2.2	0.43	30	700	1-5 2-2	0-43	0-26	0-26	0-23	tht	sit100
SIT123	Space (MIL-STD-981)	30	01:01.2	700	1.5, 2.4	0.43	30	700	1-5 2-4	0-43	0-26	0-26	0-23	smd	sit100
SIT123TH	Space (MIL-STD-981)	30	01:01.2	700	1.5, 2.4	0.43	30	700	1-5 2-4	0-43	0-26	0-26	0-23	tht	sit100
SIT124	Space (MIL-STD-981)	30	1:02	700	1.5, 3.1	0.43	30	700	1-5 3-1	0-43	0-26	0-26	0-23	smd	sit100
SIT124TH	Space (MIL-STD-981)	30	1:02	700	1.5, 3.1	0.43	30	700	1-5 3-1	0-43	0-26	0-26	0-23	tht	sit100
SIT125	Space (MIL-STD-981)	30	01:00.5	700	0.7, 1.5	0.43	30	700	0-7 1-5	0-43	0-26	0-26	0-23	smd	sit100
SIT125TH	Space (MIL-STD-981)	30	01:00.5	700	0.7, 1.5	0.43	30	700	0-7 1-5	0-43	0-26	0-26	0-23	tht	sit100
SIT126	Space (MIL-STD-981)	20	1:01	310	1	0.52	20	310	1	0-52	0-26	0-26	0-23	smd	sit100
SIT126TH	Space (MIL-STD-981)	20	1:01	310	1	0.52	20	310	1	0-52	0-26	0-26	0-23	tht	sit100
SIT127	Space (MIL-STD-981)	20	01:01.1	310	1, 1.1	0.52	20	310	1 1-1	0-52	0-26	0-26	0-23	smd	sit100
SIT127TH	Space (MIL-STD-981)	20	01:01.1	310	1, 1.1	0.52	20	310	1 1-1	0-52	0-26	0-26	0-23	tht	sit100
SIT128	Space (MIL-STD-981)	20	01:01.2	310	1, 1.2	0.52	20	310	1 1-2	0-52	0-26	0-26	0-23	smd	sit100
SIT128TH	Space (MIL-STD-981)	20	01:01.2	310	1, 1.2	0.52	20	310	1 1-2	0-52	0-26	0-26	0-23	tht	sit100
SIT129	Space (MIL-STD-981)	20	1:02	310	1, 2.1	0.52	20	310	1 2-1	0-52	0-26	0-26	0-23	smd	sit100
SIT129TH	Space (MIL-STD-981)	20	1:02	310	1, 2.1	0.52	20	310	1 2-1	0-52	0-26	0-26	0-23	tht	sit100
SIT130	Space (MIL-STD-981)	20	01:00.5	310	0.5, 1	0.52	20	310	0-5 1	0-52	0-26	0-26	0-23	smd	sit100
SIT130TH	Space (MIL-STD-981)	20	01:00.5	310	0.5, 1	0.52	20	310	0-5 1	0-52	0-26	0-26	0-23	tht	sit100
SIT131	Space (MIL-STD-981)	10	1:01	770	0.5	0.74	10	770	0-5	0-74	0-26	0-26	0-23	smd	sit100
SIT131TH	Space (MIL-STD-981)	10	1:01	770	0.5	0.74	10	770	0-5	0-74	0-26	0-26	0-23	tht	sit100
SIT132	Space (MIL-STD-981)	10	01:01.1	770	0.5, 0.6	0.74	10	770	0-5 0-6	0-74	0-26	0-26	0-23	smd	sit100
SIT132TH	Space (MIL-STD-981)	10	01:01.1	770	0.5, 0.6	0.74	10	770	0-5 0-6	0-74	0-26	0-26	0-23	tht	sit100
SIT133	Space (MIL-STD-981)	10	01:01.2	770	0.5, 0.6	0.74	10	770	0-5 0-6	0-74	0-26	0-26	0-23	smd	sit100
SIT133TH	Space (MIL-STD-981)	10	01:01.2	770	0.5, 0.6	0.74	10	770	0-5 0-6	0-74	0-26	0-26	0-23	tht	sit100
SIT134	Space (MIL-STD-981)	10	1:02	770	0.5, 1	0.74	10	770	0-5 1	0-74	0-26	0-26	0-23	smd	sit100
SIT134TH	Space (MIL-STD-981)	10	1:02	770	0.5, 1	0.74	10	770	0-5 1	0-74	0-26	0-26	0-23	tht	sit100
SIT201	Space (MIL-STD-981)	60	1:01	6900	0.77	0.65	60	6900	0-77	0-65	0-41	0-41	0-24	smd	sit200
SIT201TH	Space (MIL-STD-981)	60	1:01	6900	0.77	0.65	60	6900	0-77	0-65	0-41	0-41	0-24	tht	sit200
SIT202	Space (MIL-STD-981)	60	01:01.1	6900	0.77, 0.85	0.65	60	6900	0-77 0-85	0-65	0-41	0-41	0-24	smd	sit200
SIT202TH	Space (MIL-STD-981)	60	01:01.1	6900	0.77, 0.85	0.65	60	6900	0-77 0-85	0-65	0-41	0-41	0-24	tht	sit200
SIT203	Space (MIL-STD-981)	60	01:01.2	6900	0.77, 0.92	0.65	60	6900	0-77 0-92	0-65	0-41	0-41	0-24	smd	sit200
SIT203TH	Space (MIL-STD-981)	60	01:01.2	6900	0.77, 0.92	0.65	60	6900	0-77 0-92	0-65	0-41	0-41	0-24	tht	sit200
SIT204	Space (MIL-STD-981)	60	1:02	6900	0.77, 3.1	0.65	60	6900	0-77 3-1	0-65	0-41	0-41	0-24	smd	sit200
SIT204TH	Space (MIL-STD-981)	60	1:02	6900	0.77, 3.1	0.65	60	6900	0-77 3-1	0-65	0-41	0-41	0-24	tht	sit200
SIT205	Space (MIL-STD-981)	60	01:00.5	6900	0.39, 0.77	0.65	60	6900	0-39 0-77	0-65	0-41	0-41	0-24	smd	sit200
SIT205TH	Space (MIL-STD-981)	60	01:00.5	6900	0.39, 0.77	0.65	60	6900	0-39 0-77	0-65	0-41	0-41	0-24	tht	sit200
SIT206	Space (MIL-STD-981)	40	1:01	2900	0.51	0.79	40	2900	0-51	0-79	0-41	0-41	0-24	smd	sit200
SIT206TH	Space (MIL-STD-981)	40	1:01	2900	0.51	0.79	40	2900	0-51	0-79	0-41	0-41	0-24	tht	sit200
SIT207	Space (MIL-STD-981)	40	01:01.1	2900	0.51, 0.56	0.79	40	2900	0-51 0-56	0-79	0-41	0-41	0-24	smd	sit200
SIT207TH	Space (MIL-STD-981)	40	01:01.1	2900	0.51, 0.56	0.79	40	2900	0-51 0-56	0-79	0-41	0-41	0-24	tht	sit200
SIT208	Space (MIL-STD-981)	40	01:01.2	2900	0.51, 0.62	0.79	40	2900	0-51 0-62	0-79	0-41	0-41	0-24	smd	sit200
SIT208TH	Space (MIL-STD-981)	40	01:01.2	2900	0.51, 0.62	0.79	40	2900	0-51 0-62	0-79	0-41	0-41	0-24	tht	sit200
SIT209	Space (MIL-STD-981)	40	1:02	2900	0.51, 1.1	0.79	40	2900	0-51 1-1	0-79	0-41	0-41	0-24	smd	sit200
SIT209TH	Space (MIL-STD-981)	40	1:02	2900	0.51, 1.1	0.79	40	2900	0-51 1-1	0-79	0-41	0-41	0-24	tht	sit200
SIT210	Space (MIL-STD-981)	40	01:00.5	2900	0.3, 0.51	0.79	40	2900	0-3 0-51	0-79	0-41	0-41	0-24	smd	sit200
SIT210TH	Space (MIL-STD-981)	40	01:00.5	2900	0.3, 0.51	0.79	40	2900	0-3 0-51	0-79	0-41	0-41	0-24	tht	sit200
SIT211	Space (MIL-STD-981)	20	1:01	810	0.27	1.1	20	810	0-27	1-1	0-41	0-41	0-24	smd	sit200
SIT211TH	Space (MIL-STD-981)	20	1:01	810	0.27	1.1	20	810	0-27	1-1	0-41	0-41	0-24	tht	sit200
SIT212	Space (MIL-STD-981)	20	01:01.1	810	0.27, 0.3	1.1	20	810	0-27 0-3	1-1	0-41	0-41	0-24	smd	sit200
SIT212TH	Space (MIL-STD-981)	20	01:01.1	810	0.27, 0.3	1.1	20	810	0-27 0-3	1-1	0-41	0-41	0-24	tht	sit200
SIT213	Space (MIL-STD-981)	20	01:01.2	810	0.27, 0.32	1.1	20	810	0-27 0-32	1-1	0-41	0-41	0-24	smd	sit200
SIT213TH	Space (MIL-STD-981)	20	01:01.2	810	0.27, 0.32	1.1	20	810	0-27 0-32	1-1	0-41	0-41	0-24	tht	sit200
SIT214	Space (MIL-STD-981)	20	1:02	810	0.27, 0.55	1.1	20	810	0-27 0-55	1-1	0-41	0-41	0-24	smd	sit200
SIT214TH	Space (MIL-STD-981)	20	1:02	810	0.27, 0.55	1.1	20	810	0-27 0-55	1-1	0-41	0-41	0-24	tht	sit200
SIT215	Space (MIL-STD-981)	20	01:00.5	810	0.15, 0.27	1.1	20	810	0-15 0-27	1-1	0-41	0-41	0-24	smd	sit200
SIT215TH	Space (MIL-STD-981)	20	01:00.5	810	0.15, 0.27	1.1	20	810	0-15 0-27	1-1	0-41	0-41	0-24	tht	sit200
SIT221	Space (MIL-STD-981)	60	1:01	970	0.77	0.78	60	970	0-77	0-78	0-41	0-41	0-24	smd	sit200
SIT221TH	Space (MIL-STD-981)	60	1:01	970	0.77	0.78	60	970	0-77	0-78	0-41	0-41	0-24	tht	sit200
SIT222	Space (MIL-STD-981)	60	01:01.1	970	0.77, 0.85	0.78	60	970	0-77 0-85	0-78	0-41	0-41	0-24	smd	sit200
SIT222TH	Space (MIL-STD-981)	60	01:01.1	970	0.77, 0.85	0.78	60	970	0-77 0-85	0-78	0-41	0-41	0-24	tht	sit200
SIT223	Space (MIL-STD-981)	60	01:01.2	970	0.77, 0.92	0.78	60	970	0-77 0-92	0-78	0-41	0-41	0-24	smd	sit200
SIT223TH	Space (MIL-STD-981)	60	01:01.2	970	0.77, 0.92	0.78	60	970	0-77 0-92	0-78	0-41	0-41	0-24	tht	sit200
SIT224	Space (MIL-STD-981)	60	1:02	970	0.77, 3.1	0.78	60	970	0-77 3-1	0-78	0-41	0-41	0-24	smd	sit200
SIT224TH	Space (MIL-STD-981)	60	1:02	970	0.77, 3.1	0.78	60	970	0-77 3-1	0-78	0-41	0-41	0-24	tht	sit200
SIT225	Space (MIL-STD-981)	60	01:00.5	970	0.4, 0.77	0.78	60	970	0-4 0-77	0-78	0-41	0-41	0-24	smd	sit200
SIT225TH	Space (MIL-STD-981)	60	01:00.5	970	0.4, 0.77	0.78	60	970	0-4 0-77	0-78	0-41	0-41	0-24	tht	sit200
SIT226	Space (MIL-STD-981)	40	1:01	420	0.51	0.96	40	420	0-51	0-96	0-41	0-41	0-24	smd	sit200
SIT226TH	Space (MIL-STD-981)	40	1:01	420	0.51	0.96	40	420	0-51	0-96	0-41	0-41	0-24	tht	sit200
SIT227	Space (MIL-STD-981)	40	01:01.1	420	0.51, 0.56	0.96	40	420	0-51 0-56	0-96	0-41	0-41	0-24	smd	sit200
SIT227TH	Space (MIL-STD-981)	40	01:01.1	420	0.51, 0.56	0.96	40	420	0-51 0-56	0-96	0-41	0-41	0-24	tht	sit200
SIT228	Space (MIL-STD-981)	40	01:01.2	420	0.51, 0.62	0.96	40	420	0-51 0-62	0-96	0-41	0-41	0-24	smd	sit200
SIT228TH	Space (MIL-STD-981)	40	01:01.2	420	0.51, 0.62	0.96	40	420	0-51 0-62	0-96	0-41	0-41	0-24	tht	sit200
SIT229	Space (MIL-STD-981)	40	1:02	420	0.51, 1.1	0.96	40	420	0-51 1-1	0-96	0-41	0-41	0-24	smd	sit200
SIT229TH	Space (MIL-STD-981)	40	1:02	420	0.51, 1.1	0.96	40	420	0-51 1-1	0-96	0-41	0-41	0-24	tht	sit200
SIT230	Space (MIL-STD-981)	40	01:00.5	420	0.3, 0.51	0.96	40	420	0-3 0-51	0-96	0-41	0-41	0-24	smd	sit200
SIT230TH	Space (MIL-STD-981)	40	01:00.5	420	0.3, 0.51	0.96	40	420	0-3 0-51	0-96	0-41	0-41	0-24	tht	sit200
SIT231	Space (MIL-STD-981)	20	1:01	120	0.27	1.3	20	120	0-27	1-3	0-41	0-41	0-24	smd	sit200
SIT231TH	Space (MIL-STD-981)	20	1:01	120	0.27	1.3	20	120	0-27	1-3	0-41	0-41	0-24	tht	sit200
SIT232	Space (MIL-STD-981)	20	01:01.1	120	0.27, 0.3	1.3	20	120	0-27 0-3	1-3	0-41	0-41	0-24	smd	sit200
SIT232TH	Space (MIL-STD-981)	20	01:01.1	120	0.27, 0.3	1.3	20	120	0-27 0-3	1-3	0-41	0-41	0-24	tht	sit200
SIT233	Space (MIL-STD-981)	20	01:01.2	120	0.27, 0.32	1.3	20	120	0-27 0-32	1-3	0-41	0-41	0-24	smd	sit200
SIT233TH	Space (MIL-STD-981)	20	01:01.2	120	0.27, 0.32	1.3	20	120	0-27 0-32	1-3	0-41	0-41	0-24	tht	sit200
SIT234	Space (MIL-STD-981)	20	1:02	120	0.27, 0.55	1.3	20	120	0-27 0-55	1-3	0-41	0-41	0-24	smd	sit200
SIT234TH	Space (MIL-STD-981)	20	1:02	120	0.27, 0.55	1.3	20	120	0-27 0-55	1-3	0-41	0-41	0-24	tht	sit200
SIT235	Space (MIL-STD-981)	20	01:00.5	120	0.16, 0.27	1.3	20	120	0-16 0-27	1-3	0-41	0-41	0-24	smd	sit200
SIT235TH	Space (MIL-STD-981)	20	01:00.5	120	0.16, 0.27	1.3	20	120	0-16 0-27	1-3	0-41	0-41	0-24	tht	sit200

RF & MICROWAVE

POWER MAGNETICS

TRANSFORMERS

CUSTOM PRODUCTS

CERTIFICATIONS

MATERIAL CERTIFICATION

CAPABILITIES

PRODUCT DOCUMENTATION

APPLICATION NOTES

DOWNLOADS

GENERAL

ABOUT

CAREERS

SALES

RESOURCES

Contact Reps and Distributors

ISOLATION TRANSFORMERS
